Enums

Use enums to control states, modes, and variants by selecting from a predefined set of options.

An enum lets you choose one value from a predefined set of options.

Use enums when a property should only ever be one of a few known values—like modes, states, or variants—instead of allowing any arbitrary value like a string.

For example, instead of using a string like “left”, “center”, or “right”, an enum guarantees the value is always one of those valid options.

Enums can be:

• System enums — built-in sets of options used by the editor (for example, Horizontal Align)
• Custom enums — your own defined sets of options for your specific use case

Why not use strings or numbers?

Imagine a calendar app that shows different backgrounds based on the day of the week.

You could use a string like “Monday”, but it breaks if someone sets it to “Mon”.

You could use a number, but it’s unclear whether the week starts on Sunday or Monday—or whether the index starts at 0 or 1.

With an enum, the value must be one of the defined options, so it’s always valid and unambiguous.

Adding an enum property

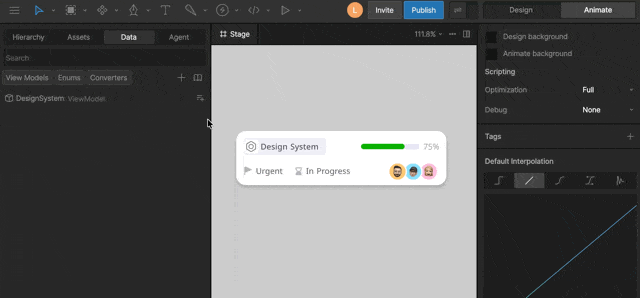

1. Create a new enum property

   Create a new enum view model property inside your view model.

2. Set the enum type

   Click the dropdown next to the property name and select an enum type.

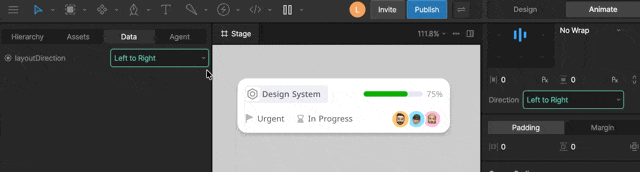

3. Set the default enum value

   Select your enum view model property and in the right sidebar, select the default value.

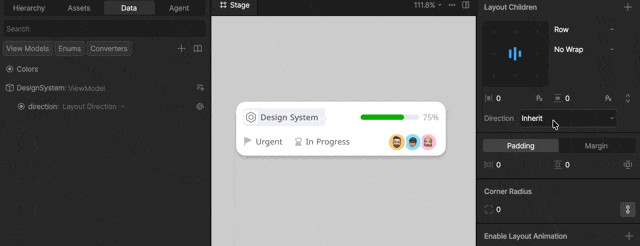

Binding enums

Enums can be bound to editor properties that use the same set of options. For example, an enum named “Layout Direction” can be bound to a layout’s Direction property.

When binding enums, the System Enum to Uint converter is required and is applied automatically.

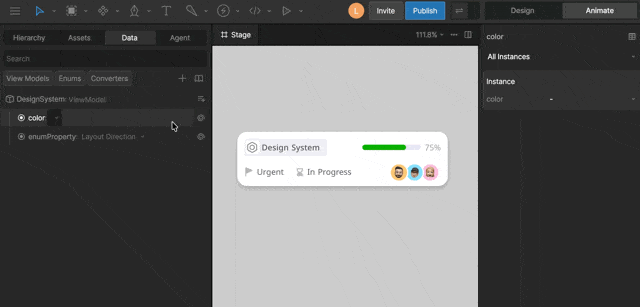

Custom enums

1. Create a new enum

   Open the Data panel, click the + icon and select enum.

2. Add enum options

   With your enum selected, click the + icon in the right sidebar.

3. Assign the enum to a property

   Assign your custom enum to your enum view model property.

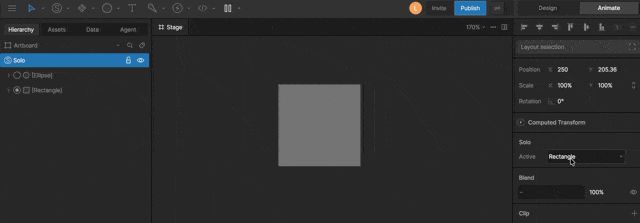

Controlling Solos with enums

Use an enum to control which Solo is active by mapping each enum value to a Solo.

1. Create a matching enum

   Create a custom enum with values that match the names and order of your Solos.
2. Bind the enum

   Bind the enum to the Solo’s Active property and apply a Convert to Number converter.
